Product Description

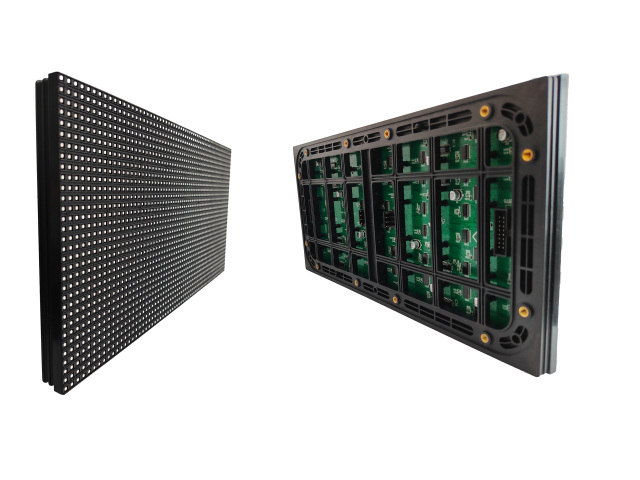

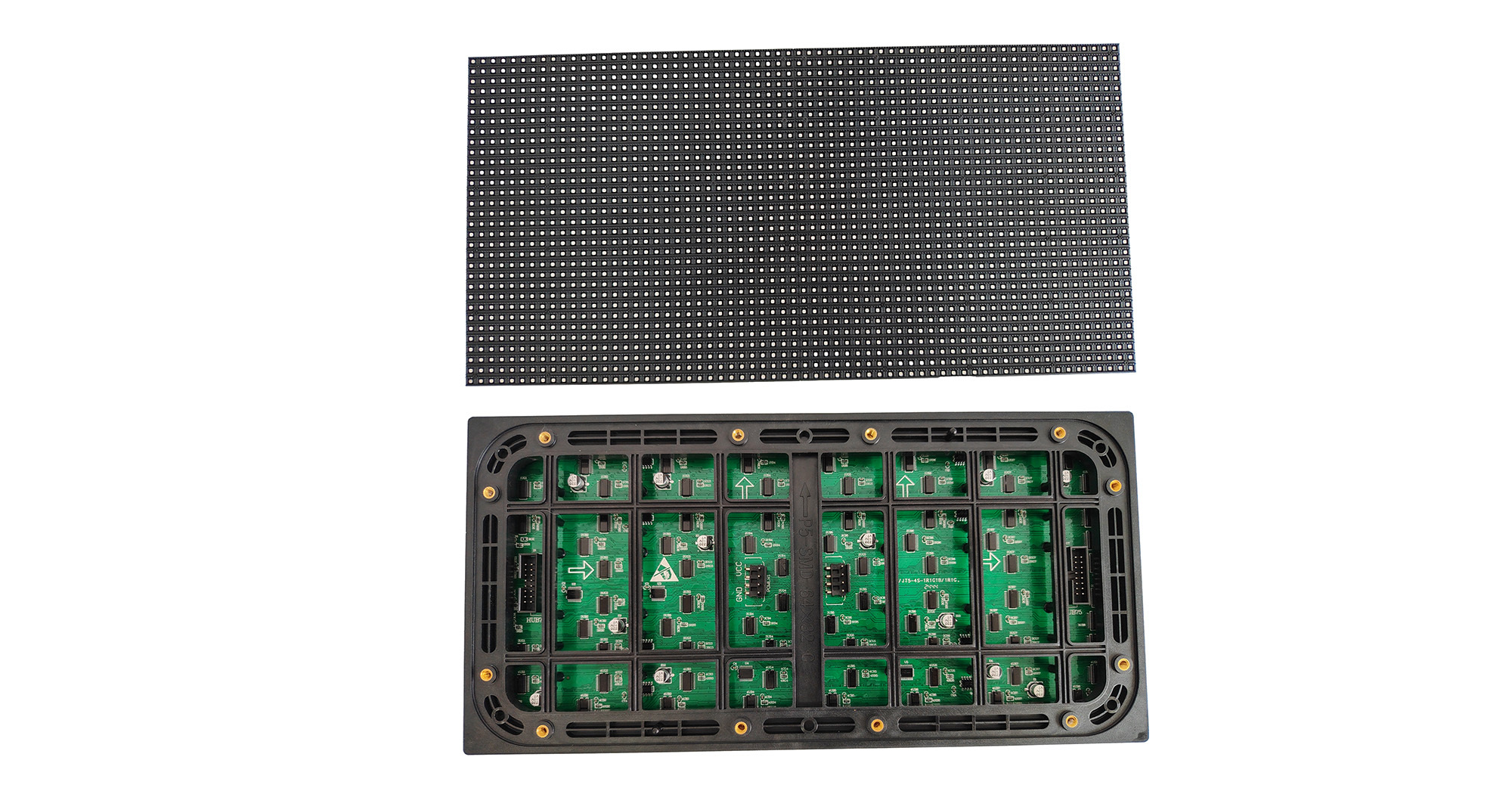

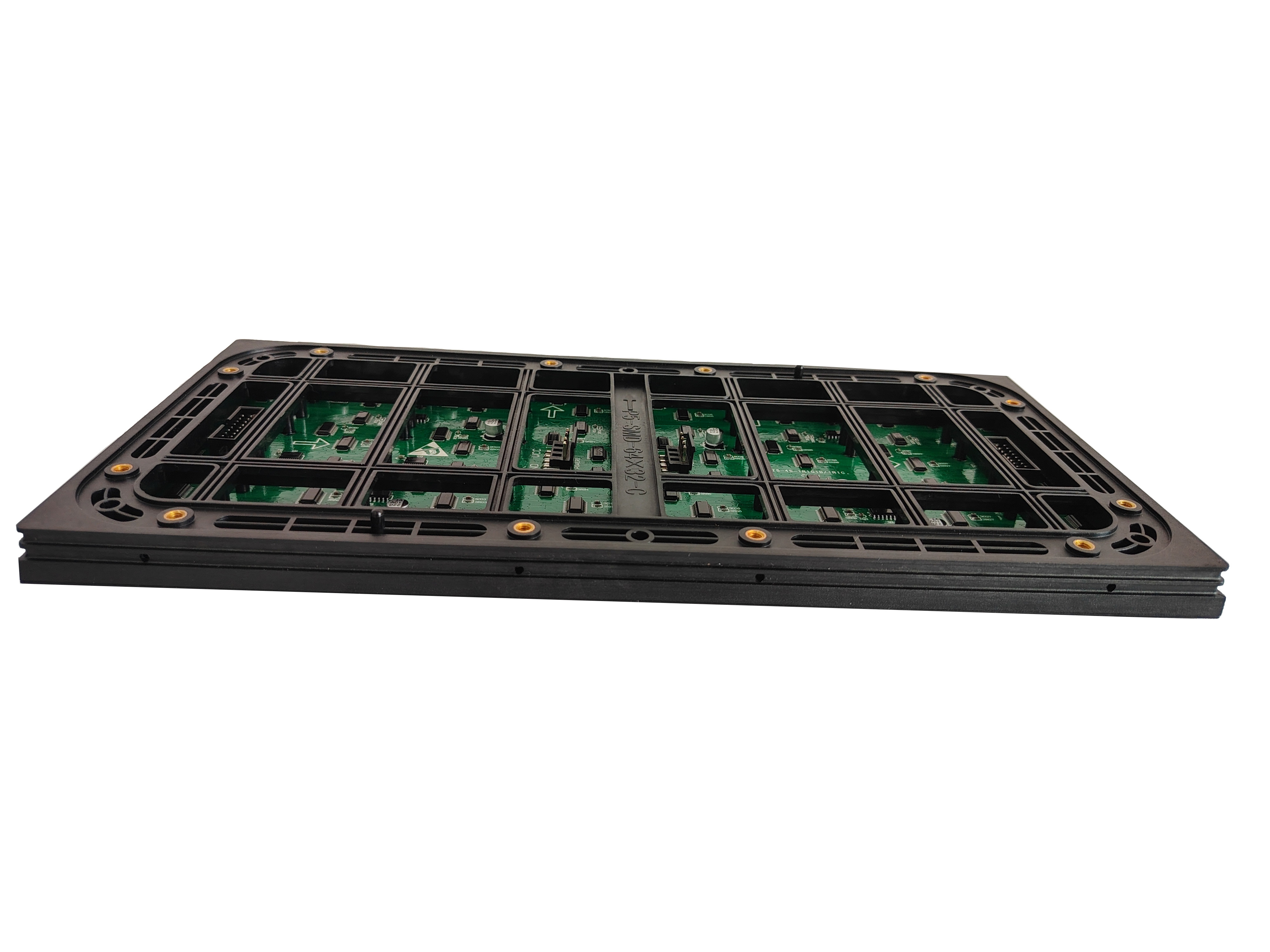

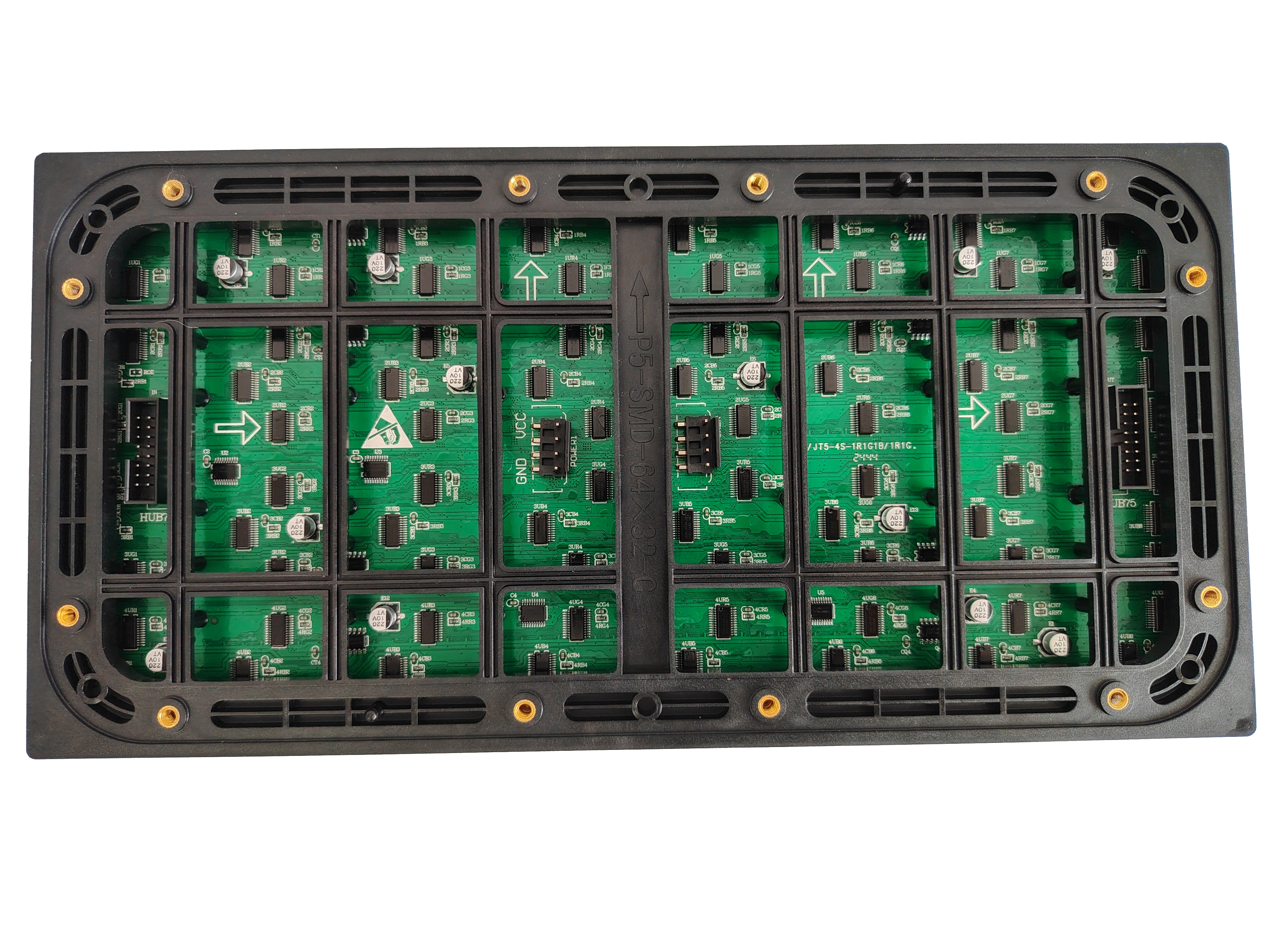

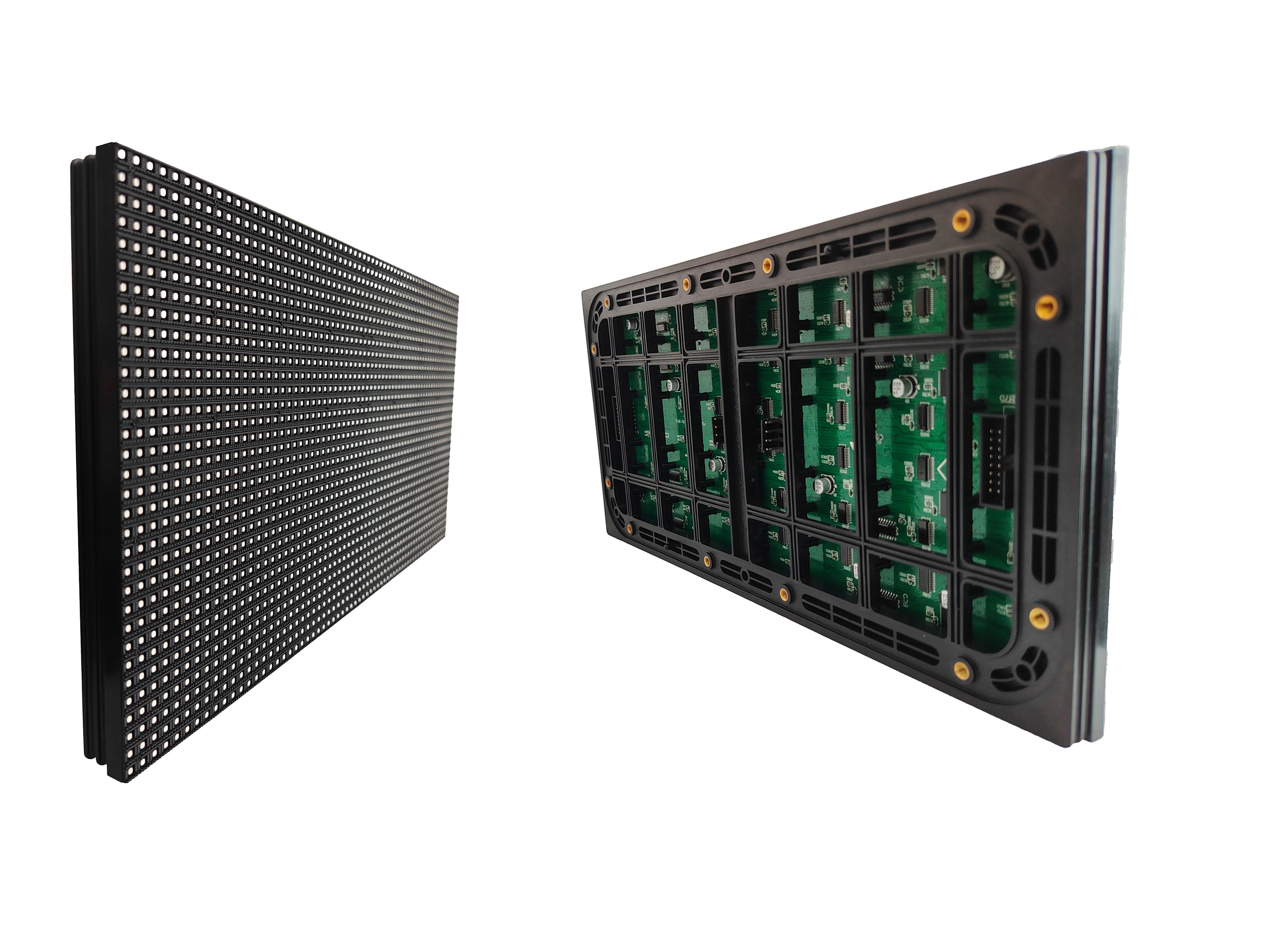

| P5 Outdoor full color module high brightness | ||
| Brightness | ≥8000cd/m2 | |
| Chromaticity coordinate | X:0.29 Y:0.29 / X:0.300 Y:0.342 | |
| Pixel pitch | 5mm | |
| Pixel Density | 40000dot/ M2 | |
| Pixel configuration | 1R1G1B | |
| LED specification | SMD1921 | |
| Dimension | （W）320mm*160mm（H） | |
| Pixel resolution | （W）64dot*32dot（H） | |
| Module weight | g | |
| Module thickness | mm | |
| HUB | HUB75 | |
| Best viewing angle | H:>120 V:>140 Anti-glare | |
| Best viewing distance | 10-200M | |
| Refresh frequency | 3840Hz | |
| Working temperature | -20℃ - +65℃ | |
| Working humidity | 10%-90%RH, No condensation | |
| Panel power supply | 4.2V | |
| Screen power supply | AC100V—AC240V | |
| Maximum power of unit plate | 45W | |
| Max power | 900W/M2 | |
| Average power | 300W/M2 | |
| Drive type | Constant current 4 scans | |
| Protection level | ≥IP65 | |
| Led Lamp flatness | ≤±1mm | |
| Service lifespan | 100,000Hours | |
| Product characteristics | No smear, evenly spaced lights, overload and overcurrent, low current, low light decay, high luminous efficiency, long service life, fine and clear display, anti-glare, high brightness, strong penetration, long viewing distance, stable performance | |
Product Features
Illuminate your brand with the P5 LED full-color display module, creating a captivating visual experience that draws in customers.
The high-brightness P5 LED advertising screen panel ensures your message is clear and visible in any setting, capturing the attention of every passerby.
Opt for our P5 LED outdoor display modules to make your advertisements shine around the clock, boosting brand awareness and customer engagement.
Application
"Shine Brighter, Advertise Smarter – P5 High Brightness LED Display"
Looking for crystal-clear digital signage? Our P5 LED module is ultra-bright, energy-efficient, and built to last, ideal for shop signs, highways, and commercial billboards.
Features
1) Brand LED chip, with super-high brightness LED, high contrast.
2) A-class LED display module frame and mask, which could endual harsh weather.
3) Fiberglass green enviromental PCB with 18mil thickness copper plating.
4) High frame frequency, wide view angle with excellent visibility and good performance.
5) With module development and distributed scan technology, high reliability.
6) Universal DC input / full range.
7) IP65 protection level, outdoor solution.
8) PC synchronous or asynchronous control (optional).
9) Use common video play software, easy to use.
10) Quick and easy assembly and disassembly.
11) High brighness and refreshrate.
12) 2 years warranty.
8000 Nits P5 LED Display Module High Brightness LED Outdoor Display Panels for Outdoor Signs
Advantage
1.Perfect Display Effect:
High brightness and clearly led display effect with easy use control system which allow you easy become enviable led display experts.
High intensity and can be adjusted, so can meet the request of the customers according the application environment.
To pictures and character, have clear, exquisite and real display effect.
Big viewing angle to 120-150 degree at horizontal line, 120-150 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion.
2.High quality
Best equality, have the excellent consistency of light.
Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
Our most basic guarantee: the aging time exceeding 48 hours. Malfunction dot rate less than 0.0002. MTBF more than 5000 hours. And the EPISTAR assuring high brightness and long lifespan.
3.Attractive Factory Price
We are a professional manufacturer, has its own factories and production lines. Without middlemen and trading companies, our price is more competitive, quality is more reliable. Our price is more competitive, quality is more reliable.
1. We provide 2 years warranty. If the item is defective, please notify us within 7 days after goods delivered.
2. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
3. The buyer is responsible for all shipping costs incurred.
4.Support 24 Hours Online Guide & Help if you have any problems!
5. High quality original LED Chip with CE,ROHS,FCC certified.
6. We gaurantee to test every part before the delivery and gaurantee the quality!
