Product Description

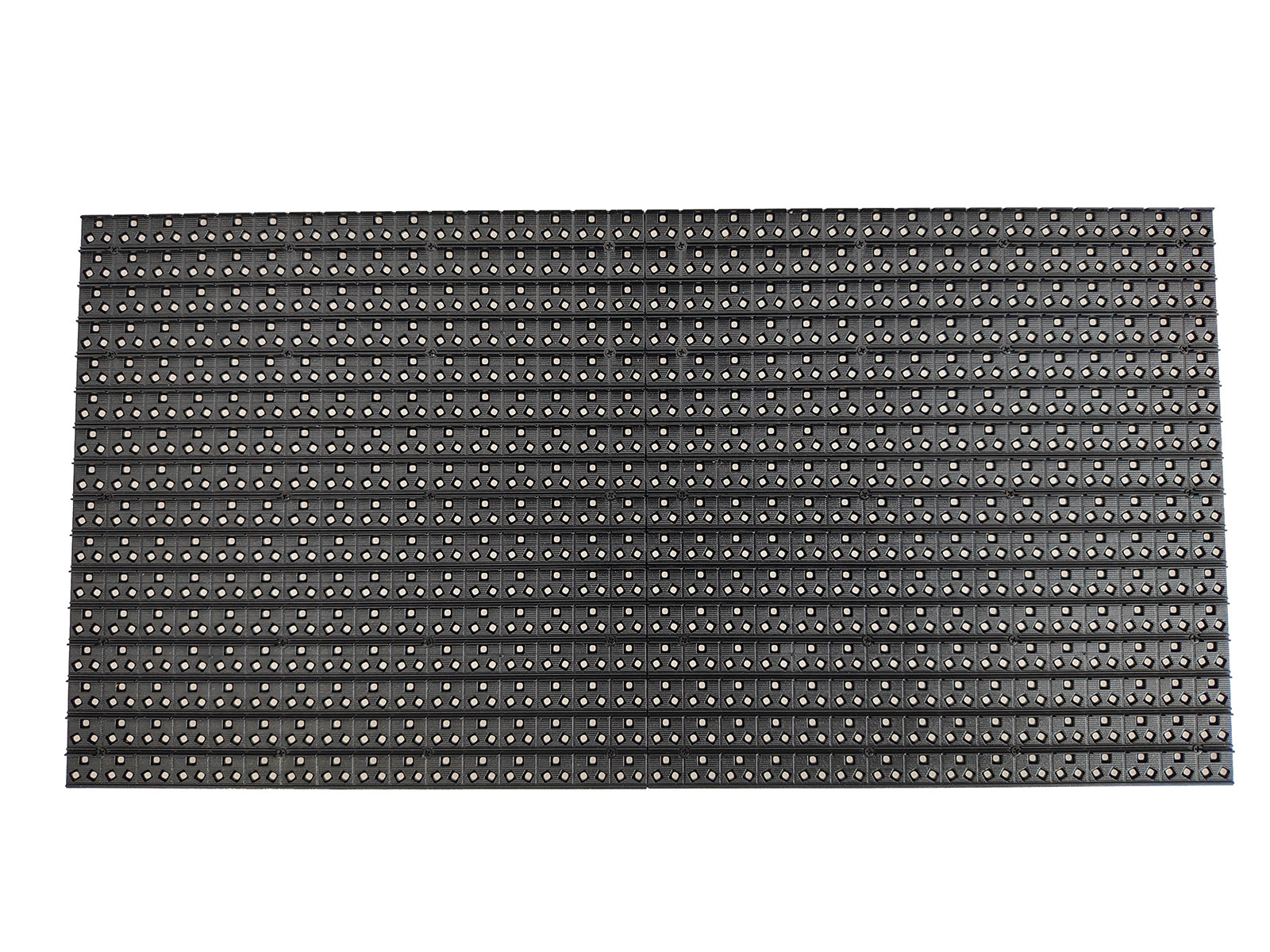

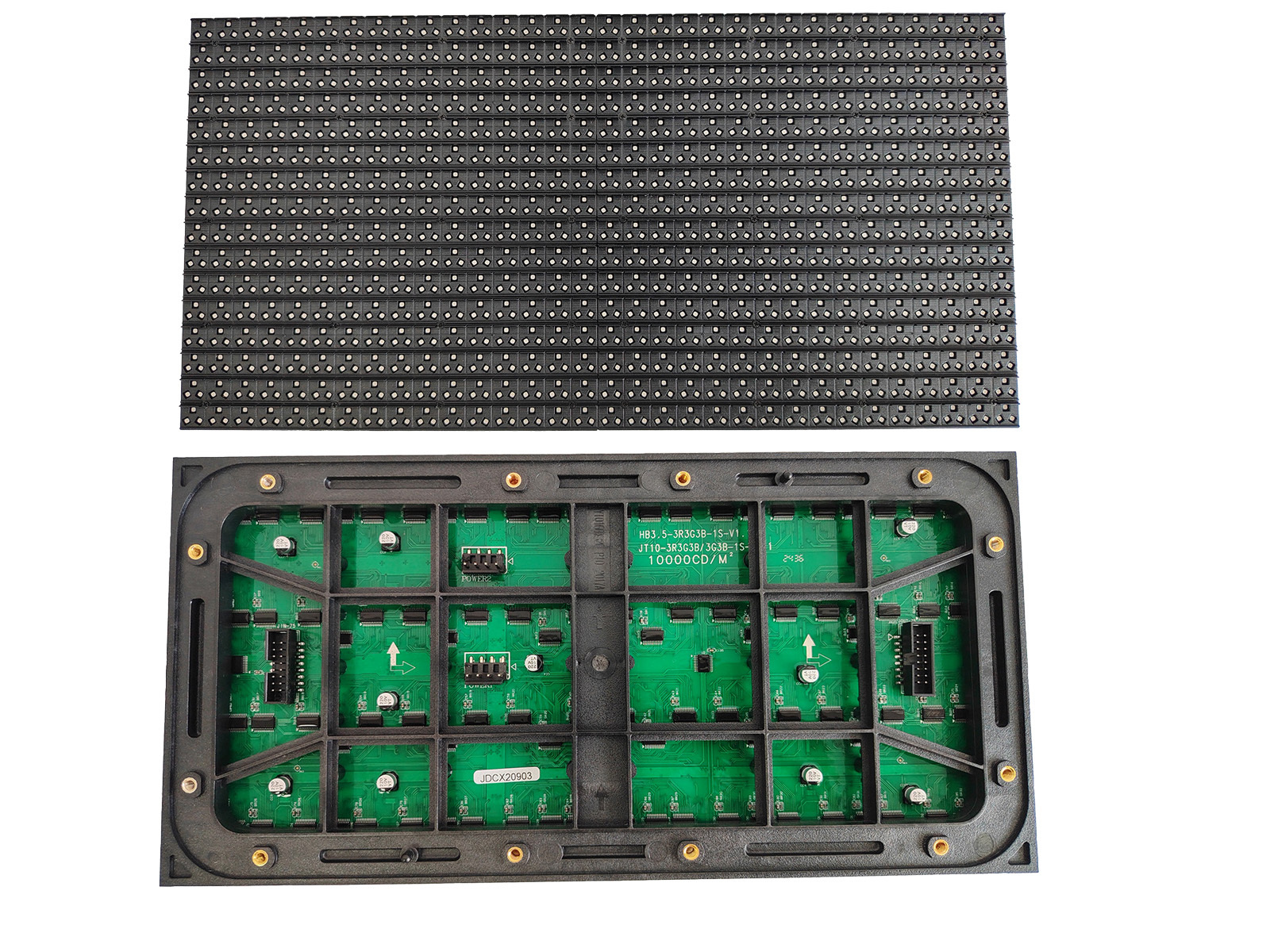

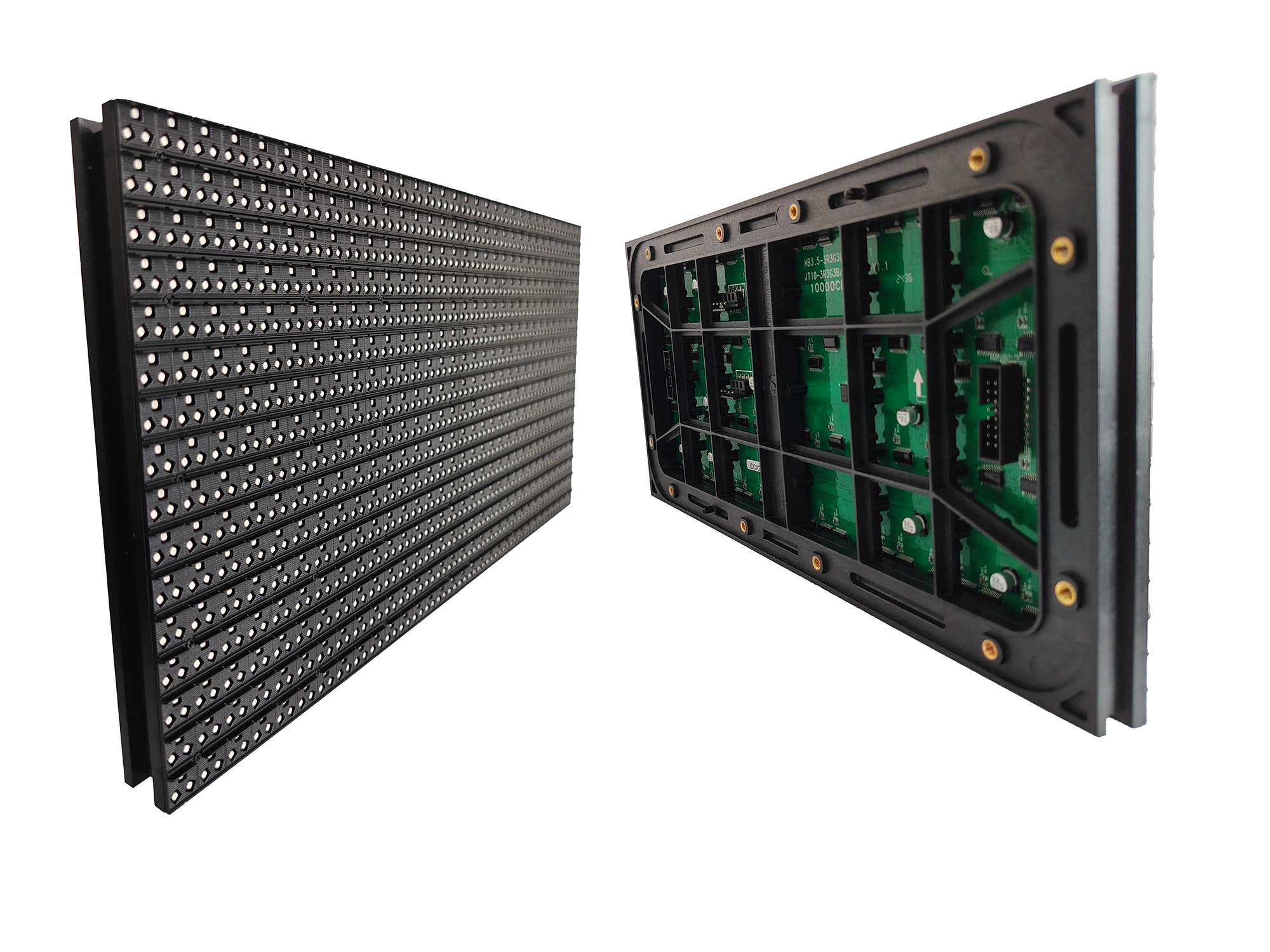

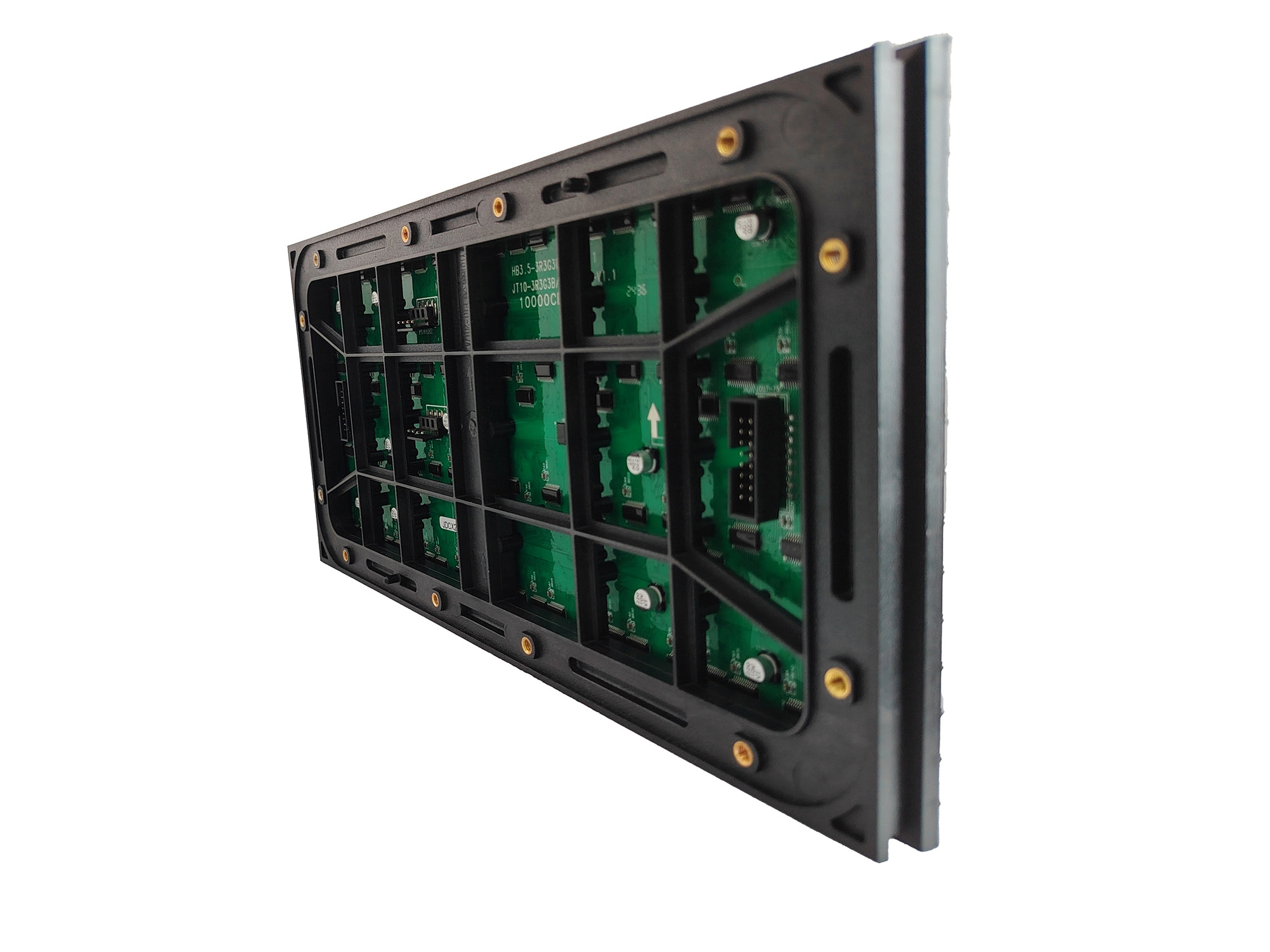

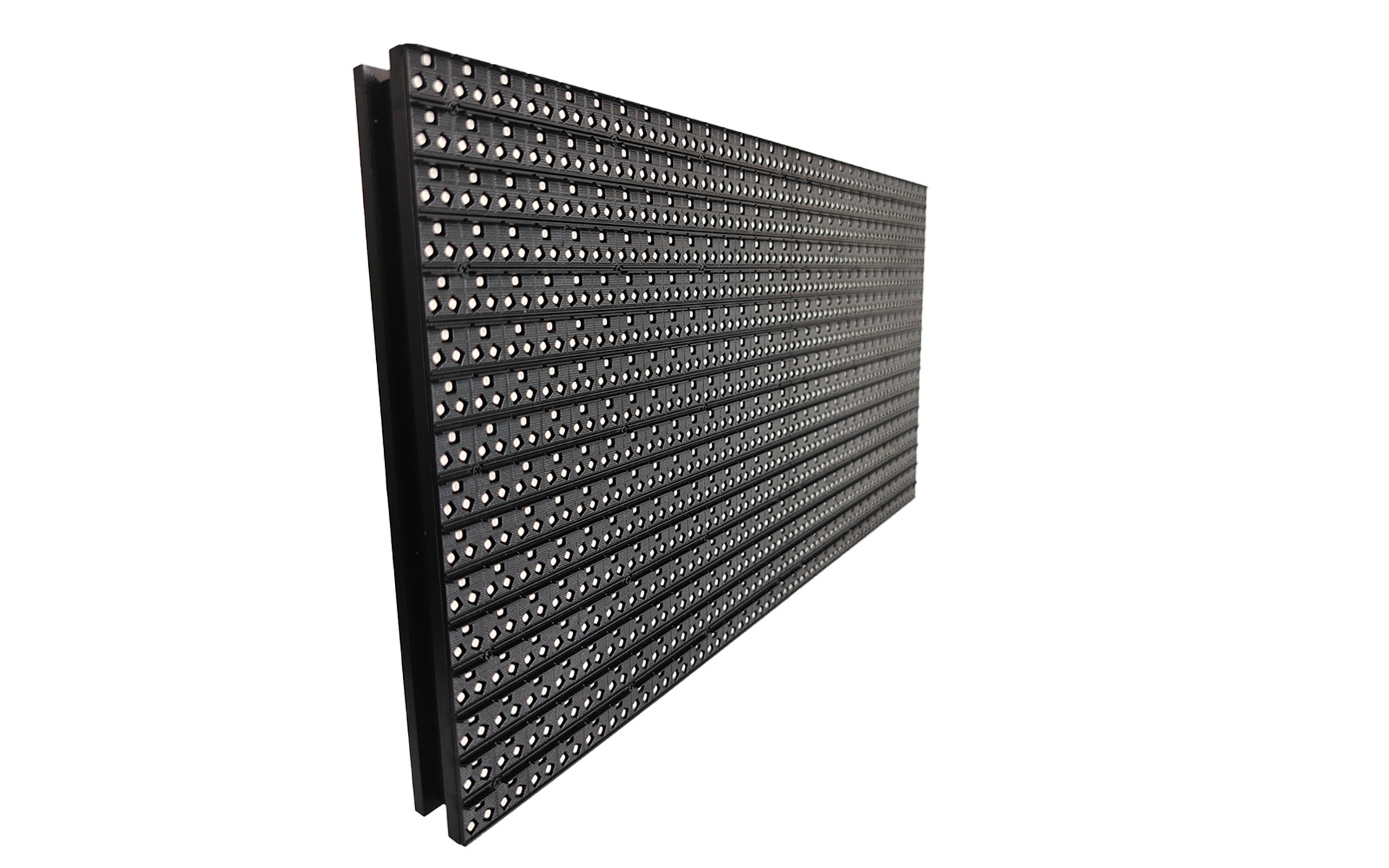

High Brightness P10 LED Panel 10000 Nits LED Display Module Traffic LED Display Module Waterproof LED Panel for Digital Signage
| P10 Outdoor full color module high brightness | ||
| Brightness | ≥10000cd/m2 | |
| Chromaticity coordinate | X:0.29 Y:0.29 / X:0.300 Y:0.342 | |
| Luminous interval | 3.5mm | |
| Pixel pitch | 10mm | |
| Pixel Density | 30000dot/ M2 | |
| Pixel configuration | 3R3G3B / Ф6.0*Ф6.5 | |
| LED specification | SMD1921 | |
| Dimension | （W）320mm*160mm（H） | |
| Pixel resolution | （W）32dot*16dot（H） | |
| Module weight | 480±10g | |
| Module thickness | 23.5mm | |
| HUB | HUB75 | |
| Best viewing angle | H:>110 V:>140 Anti-glare | |
| Best viewing distance | 10-200M | |
| Refresh frequency | 1920Hz / 3840Hz | |
| Working temperature | -20℃ - +65℃ | |
| Working humidity | 10%-90%RH, No condensation | |
| Panel power supply | 4.2V/5V | |
| Screen power supply | AC100V—AC240V | |
| Maximum power of unit plate | 45W | |
| Max power | 800W/M2 | |
| Average power | 300W/M2 | |
| Drive type | Constant current static scan | |
| Protection level | ≥IP65 | |
| Led Lamp flatness | ≤±1mm | |
| Service lifespan | 10,0000Hours | |
| Product characteristics | One point and multiple lights backup, blind lights but no blind spots, no smearing, lights are evenly separated, overload and overcurrent, low current, small light decay, high luminous efficiency, long service life, fine and clear display, anti-glare, high brightness, strong penetration, long viewing distance, stable performance | |
Product Features
1. "Weatherproof, Ultra-Bright, and Built to Last – P10 LED Module"
Designed for high-performance digital signage, our P10 LED panel is energy-efficient, waterproof, and easily programmable for your custom LED display needs.
2. "10000 Nits of Brightness – Your Message, Always Visible!"
From traffic signs to outdoor billboards, our P10 LED Display Module delivers stunning clarity and exceptional durability to ensure maximum impact.
Application
"Shine Brighter, Advertise Smarter – P10 High Brightness LED Display"
Looking for crystal-clear digital signage? Our P10 LED module is ultra-bright, energy-efficient, and built to last, ideal for shop signs, highways, and commercial billboards.
Features
1) Brand LED chip, with super-high brightness LED, high contrast.
2) A-class LED display module frame and mask, which could endual harsh weather.
3) Fiberglass green enviromental PCB with 18mil thickness copper plating.
4) High frame frequency, wide view angle with excellent visibility and good performance.
5) With module development and distributed scan technology, high reliability.
6) Universal DC input / full range.
7) IP65 protection level, outdoor solution.
8) PC synchronous or asynchronous control (optional).
9) Use common video play software, easy to use.
10) Quick and easy assembly and disassembly.
11) High brighness and refreshrate.
12) 2 years warranty.
10000 Nits High Brightness LED Module Programmable LED Module P10 for Outdoor Signs
Advantage
1.Perfect Display Effect:
High brightness and clearly led display effect with easy use control system which allow you easy become enviable led display experts.
High intensity and can be adjusted, so can meet the request of the customers according the application environment.
To pictures and character, have clear, exquisite and real display effect.
Big viewing angle to 120-150 degree at horizontal line, 120-150 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion.
2.High quality
Best equality, have the excellent consistency of light.
Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
Our most basic guarantee: the aging time exceeding 48 hours. Malfunction dot rate less than 0.0002. MTBF more than 5000 hours. And the EPISTAR assuring high brightness and long lifespan.
3.Attractive Factory Price
We are a professional manufacturer, has its own factories and production lines. Without middlemen and trading companies, our price is more competitive, quality is more reliable. Our price is more competitive, quality is more reliable.
Packaging & Shipping
1. We provide 2 years warranty. If the item is defective, please notify us within 7 days after goods delivered.
2. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
3. The buyer is responsible for all shipping costs incurred.
4.Support 24 Hours Online Guide & Help if you have any problems!
5. High quality original LED Chip with CE,ROHS,FCC certified.
6. We gaurantee to test every part before the delivery and gaurantee the quality!
We are specilized in LED Display, which widely in industries of advertisement, pub, airport, station, harbor, gym, banks, school, factory, post office, department store, hospital, revenue office, customer, supervising centre, etc. All the products are exported to America, Russia, Great Britain, France, Austrilia, Greece, Italy, Japan, South Korea, Taiwan, Kazakhstan, etc.
Our company owns a group of high-quality professional and technical personnel and advanced modern sophisticated production equipment. We implement strict quality management, making every LED module,LED display cabinet,Power supply ,Video processor ,LED display into competitive products, etc. From the purchasing of the raw material to manufacturing, assembling, testing, we carry out every step one by one according to the ISO9001:2000 international quality control system strictly to guarantee the quality. And our products have passed the ISO14001:2004 international environment guarantee system certificate and European CE certification.
